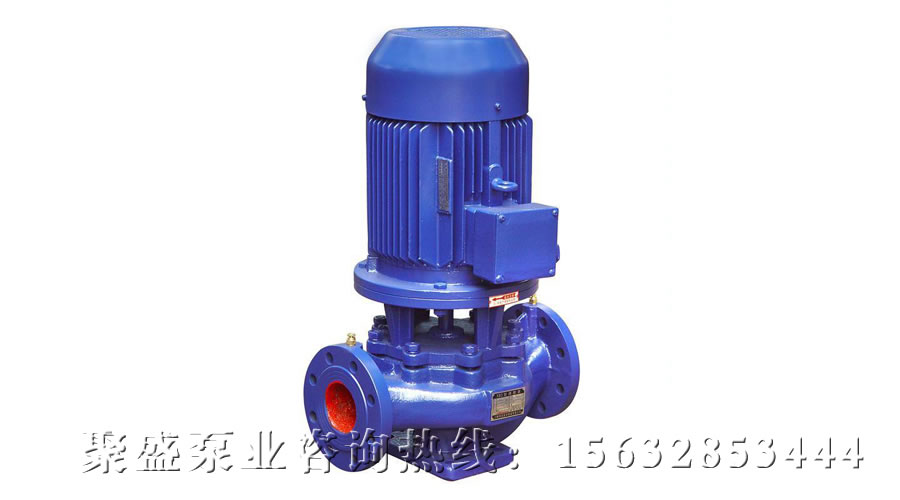

A pipeline pump is a type of centrifugal pump (both single - stage and multi - stage), which can be divided into vertical and horizontal structures. A vertical pipeline pump gets its name because its inlet and outlet are on the same straight line and have the same diameter, resembling a section of pipeline, and it can be installed at any position of the pipeline.

Product Features of ISG Vertical Pipeline Centrifugal Pumps

1. Compact Structure and Easy Installation: The ISG pump has a vertical structure. Its inlet and outlet have the same diameter and are on the same center line. It can be installed in the pipeline just like a valve. It has a compact and beautiful appearance, occupies a small area, and reduces the construction cost. If equipped with a protective cover, it can be used outdoors.

2. Stable Operation and Low Noise: The impeller is directly mounted on the extended shaft of the motor, resulting in a short axial dimension and a compact structure. The bearings of the pump and the motor are reasonably configured, which can effectively balance the radial and axial loads generated during the pump's operation. Thus, the pump runs smoothly with very low vibration and noise.

3. Long - lasting Sealing: The shaft seal adopts mechanical seals or a combination of mechanical seals. Imported titanium - alloy seal rings, medium - temperature - resistant mechanical seals, and hard - alloy materials are used. These seals are wear - resistant and can effectively extend the service life of the mechanical seals.

4. Convenient Installation and Maintenance: It is easy to install and repair. There is no need to disassemble the pipeline system. You can remove all the rotor components by simply removing the nuts of the pump coupling base.

5. Flexible Operation Modes: According to the usage requirements, such as the needs of flow rate and head, the pumps can be operated in series or in parallel.

6. Diverse Installation Options: The pumps can be installed vertically or horizontally according to the requirements of the pipeline layout.

Operating Conditions of ISG Vertical Pipeline Centrifugal Pumps

1. Pressure Requirements: The suction pressure should be ≤ 1.0 Mpa, or the maximum working pressure of the pump system should be ≤ 1.6 Mpa, that is, the suction pressure of the pump + the pump head ≤ 1.6 Mpa. The static pressure test pressure of the pump is 2.5 Mpa. Please specify the system working pressure when placing an order. If the working pressure of the pump system is greater than 1.6 Mpa, please mention it separately when ordering so that cast - steel materials can be used for the flow - through components and connection parts of the pump during manufacturing.

2. Environmental Conditions: The ambient temperature should be < 40°C, and the relative humidity should be < 95%.

3. Medium Conditions: The volume content of solid particles in the conveyed medium should not exceed 0.1% of the unit volume, and the particle size should be < 0.2 mm.

Note: If the conveyed medium contains fine particles, please indicate it when ordering so that wear - resistant mechanical seals can be used.

This series of vertical pipeline pumps, horizontal pipeline pumps, hot - water pipeline pumps, and multi - stage pipeline pumps have the following advantages:

• Smooth Operation: They run smoothly without vibration.

• Leak - free Sealing: Hard - alloy seals made of different materials ensure no leakage when conveying different media.

• Low Noise: With two low - noise bearings, the pumps run stably. Except for the faint sound of the motor, there is basically no noise.

• Low Failure Rate: The simple and reasonable structure greatly increases the trouble - free working time of the whole machine.

ISG Type Vertical Pipeline Centrifugal Pump Performance Parameters:
