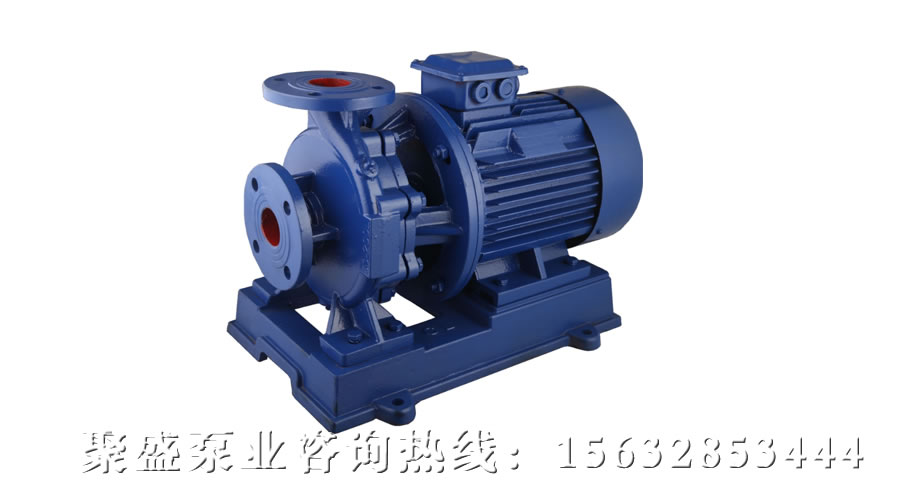

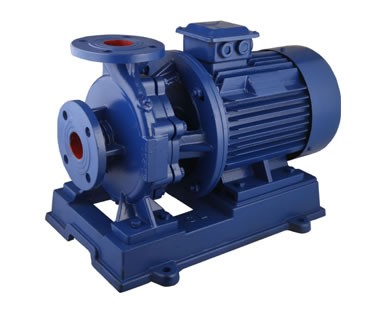

Horizontal Pipeline Pump

產品規格：Horizontal Pipeline Pump
訂購電話：166-0318-1010
發布時間：2019-09-10 09:01:34
產品說明：
Significance of Horizontal Pipeline Centrifugal Pump Model Designations:For example: ISW100-160 (I) ABISW - Horizontal centrifugal pump100 - Nominal diameter of pump inlet and outlet (mm)160 - Nominal diameter of the impeller (mm)I&nbs

產品描述

Significance of Horizontal Pipeline Centrifugal Pump Model Designations:
For example: ISW100-160 (I) AB

ISW - Horizontal centrifugal pump
100 - Nominal diameter of pump inlet and outlet (mm)
160 - Nominal diameter of the impeller (mm)
I - Flow rate classification
AB - Impeller undergoes first and second cutting

Product Features of Horizontal Pipeline Centrifugal Pumps

Smooth Operation: The absolute concentricity of the pump shaft and the exceptional dynamic and static balance of the impeller ensure stable operation with no vibration.
Leak-Free Performance: Hard alloy seals of different materials guarantee no leakage during the transportation of various media.
Low Noise: Equipped with two low-noise bearings, the pump operates smoothly. Apart from the faint sound of the motor, there is essentially no noise.
Low Failure Rate: The simple and rational structure, combined with internationally advanced quality components for key parts, significantly increases the trouble-free operation time of the entire machine.
Easy Maintenance: Replacing seals and bearings is simple and convenient.
Space-Saving Design: The outlet can be oriented in three directions—left, right, or upward—facilitating pipeline layout and installation while saving space.

Main Applications of Horizontal Pipeline Centrifugal Pumps

ISW Type Pipeline Centrifugal Pump:

Transports clear water and other liquids with physical and chemical properties similar to water.
Suitable for industrial and urban water supply/drainage, high-rise building water 增壓，garden irrigation, fire fighting systems, and equipment matching.
Temperature range: $T \leq 8 0^{°} C$ .

ISWR (WRG) Hot Water (High Temperature) Circulation Pump:

Widely used in energy, metallurgy, chemical, textile, paper, and hospitality industries for high-temperature hot water circulation and urban heating systems.
Temperature range: ISWR $T \leq 12 0^{°} C$ ; WRG $T \leq 24 0^{°} C$ .

ISWH Horizontal Chemical Pump:

Transports corrosive liquids without solid particles, with viscosity similar to water.
Applicable in petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical, and synthetic fiber sectors.
Temperature range: $? 2 0^{°} C \leq T \leq 12 0^{°} C$ .

ISWB Horizontal Oil Pump:

Transports petroleum products such as gasoline, diesel, and kerosene.
Temperature range: $? 2 0^{°} C \leq T \leq 12 0^{°} C$ .

Operating Conditions of ISW Horizontal Pipeline Centrifugal Pumps

Pressure Requirements:

Suction pressure ≤ 1.0 Mpa, or the maximum working pressure of the pump system ≤ 1.6 Mpa (i.e., pump suction pressure + pump head ≤ 1.6 Mpa).
Static pressure test pressure of the pump is 2.5 Mpa. Please specify the system working pressure when ordering. If the system working pressure exceeds 1.6 Mpa, notify the manufacturer separately to ensure cast steel materials are used for flow-through components and connections.

Environmental Conditions:

Ambient temperature < 40°C, relative humidity < 95%.

Medium Requirements:

Solid particle volume content in the conveyed medium ≤ 0.1% of unit volume, with particle size < 0.2 mm.

Note: If the medium contains fine particles, specify this during ordering to ensure the use of wear-resistant mechanical seals.

Horizontal Pipeline Centrifugal Pump Performance Parameters:

型號	口徑	流量		揚程	效率	轉速	電機功率	必需汽蝕余量
型號	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r
15-80	15	1.1 1.5 2.0	0.3 0.42 0.55	8.5 8 7	26 34 34	2800	0.18	2.3
20-110	20	1.8 2.5 3.3	0.5 0.69 0.91	16 15 13.5	25 34 35	2800	0.37	2.3
20-160	20	1.8 2.5 3.3	0.5 0.69 0.91	33 32 30	19 25 23	2900	0.75	2.3
25-110	25	2.8 4 5.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.55	2.3
25-125	25	2.8 4 5.2	0.78 1.11 1.44	20.6 20 18	28 36 35	2900	0.75	2.3
25-125A	25	2.5 3.6 4.6	0.69 1.0 1.28	17 16 14.4	35	2900	0.55	2.3
25-160	25	2.8 4 5.2	0.78 1.11 1.44	33 32 30	24 32 33	2900	1.5	2.3
25-160A	25	2.6 3.7 4.9	0.12 1.03 1.36	29 28 26	31	2900	1.1	2.3
型號	口徑	流量		揚程	效率	轉速	電機功率	必需汽蝕余量
型號	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r
32-100(I)	32	4.4 6.3 8.3	1.22 1.75 2.32	13.2 12.5 11.3	48 54 53	2900	0.75	2.0
32-125	32	3.5 5 6.5	0.97 0.39 1.8	22 20 18	40 44 42	2900	0.75	2.3
32-125A	32	3.1 4.5 5.8	0.86 1.25 1.61	17.6 16 14.4	43	2900	0.55	2.3
32-160(I)	32	4.4 6.3 8.3	1.22 1.75 2.32	33.2 32 30.2	34 40 42	2900	2.2	2.0
32-200(I)	32	4.4 6.3 8.3	1.22 1.75 2.32	50.5 50 48	26 33 35	2900	4	2.0
32-200A	32	2.8 4 5.2	0.78 1.11 1.44	44.6 44 42.7	34 40 42	2900	2.2	2.0
型號	口徑	流量		揚程	效率	轉速	電機功率	必需汽蝕余量
型號	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r
40-100	40	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.55	2.3
40-100A	40	3.9 5.6 7.4	1.08 1.56 2.06	10.6 10 9	52	2900	0.37	2.3
40-125	40	4.4 6.3 8.3	1.22 1.75 2.31	21 20 18	41 46 43	2900	1.1	2.3
40-125A	40	3.9 5.6 7.4	1.08 1.56 2.06	17.6 16 14.4	40 45 41	2900	0.75	2.3
40-160	40	4.4 6.3 8.3	1.22 1.75 2.31	33 32 30	35 40 40	2900	2.2	2.3
40-160A	40	4.1 5.9 7.8	1.14 1.64 2.17	29 28 26.3	34 39 39	2900	1.5	2.3
40-160B	40	3.8 5.5 7.2	1.06 1.53 2.0	25.5 24 22.5	34 38 37	2900	1.1	2.3
40-200	40	4.4 6.3 8.3	1.22 1.75 2.31	51 50 48	26 33 32	2900	4	2.3
40-200A	40	4.1 5.9 7.8	1.14 1.64 2.17	45 44 42	26 31 30	2900	3	2.3
40-200B	40	3.7 5.3 7.0	1.03 1.47 1.94	38 36 34.5	29	2900	2.2	2.3
40-250	40	4.4 6.3 8.3	1.22 1.75 2.31	82 80 74	24 28 28	2900	7.5	2.3
40-250A	40	4.1 5.9 7.8	1.14 1.64 2.17	72 70 65	24 28 27	2900	5.5	2.3
40-250B	40	3.8 5.5 7.0	1.06 1.53 1.94	61.5 60 56	23 27 26	2900	4	2.3
型號	口徑	流量		揚程	效率	轉速	電機功率	必需汽蝕余量
型號	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r
40-100(I)	40	8.8 12.5 16.3	2.44 3.47 4.53	13.2 12.5 11.3	55 62 60	2900	1.1	2.3
40-100(I)A	40	8 11 14.5	2.22 3.05 4.03	10.6 10 9	60	2900	0.75	2.3
40-125(I)	40	8.8 12.5 16.3	2.44 3.47 4.53	21.2 20 17.8	49 58 57	2900	1.5	2.3
40-125(I)A	40	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3
40-160(I)	40	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3
40-160(I)A	40	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3
40-160(I)B	40	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50	2900	1.5	2.3
40-200(I)	40	8.8 12.5 16.3	2.44 3.47 4.53	51.2 50 48	38 46 46	2900	5.5	2.3
40-200(I)A	40	8.3 11.7 15.3	2.31 3.25 4.25	45.0 44 42	37 45 45	2900	4	2.3
40-200(I)B	40	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44	2900	3	2.3
40-250(I)	40	8.8 12.5 16.3	2.44 3.47 4.53	81.2 80 77.5	31 38 40	2900	11	2.3
40-250(I)A	40	8.2 11.6 15.2	2.28 3.22 4.22	71.0 70 68	38	2900	7.5	2.3
40-250(I)B	40	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37	2900	7.5	2.3
40-250(I)C	40	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3
