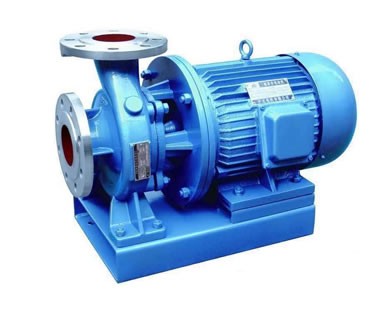

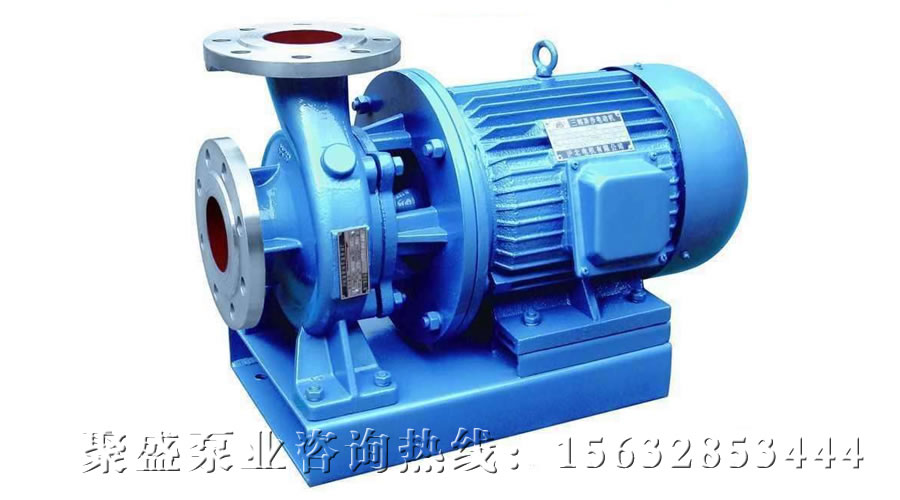

Introduction to Horizontal Stainless Steel Pipeline Pumps

These pumps can be made of stainless - steel materials such as 202, 304, 316, and 316L.

• Smooth Operation: The absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without any vibration.

• Leak - proof: Hard - alloy seals made of different materials guarantee no leakage when transporting different media.

Selection of Horizontal Stainless Steel Pipeline Pumps

1. ISW Horizontal Pipeline Pump: It is used for transporting clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, water boosting for high - rise buildings, garden sprinkler irrigation, fire - fighting boosting, long - distance transportation, heating, ventilation, and air - conditioning refrigeration cycles, cold and hot water circulation boosting in bathrooms, and equipment matching. The operating temperature $t\le 80^{°}C$.

2. ISWR Horizontal Hot - water Pipeline Pump: It is widely used in the pressurized circulation transportation of boiler hot water in industries such as metallurgy, chemical engineering, textile, papermaking, as well as in hotels and restaurants, and in urban heating systems. The operating temperature of the ISWR type is $t\le 120^{°}C$.

3. ISWH Horizontal Chemical Pipeline Pump: It is used for transporting non - solid - particle - containing, corrosive liquids with a viscosity similar to water. It is suitable for sectors such as petroleum, chemical engineering, metallurgy, power, papermaking, food, pharmaceuticals, and synthetic fibers. The operating temperature ranges from $?20^{°}C$ to $+120^{°}C$.

4. ISWB Explosion - proof Horizontal Pipeline Pump: It is used for transporting oil products such as gasoline, kerosene, and diesel, or flammable and explosive liquids. The temperature of the transported medium ranges from $?20^{°}C$ to $+120^{°}C$.

5. IHW Horizontal Stainless - steel Pipeline Pump: It is used for transporting non - solid - particle - containing, corrosive liquids with a viscosity similar to water. It is suitable for sectors such as petroleum, chemical engineering, metallurgy, power, papermaking, food, pharmaceuticals, and synthetic fibers. The operating temperature ranges from $?20^{°}C$ to $120^{°}C$.

Operating Requirements for Horizontal Stainless Steel Pipeline Pumps

• The suction pressure of the stainless - steel centrifugal pump is $\le 1.0MPa$, or the maximum working pressure of the pump system is $\le 1.6MPa$, that is, the suction pressure of the pump + the pump head $\le 1.6MPa$. The static pressure test pressure of the pump is $2.5MPa$. Please specify the system working pressure when placing an order. If the working pressure of the pump system is greater than $1.6MPa$, please mention it separately when ordering so that cast - steel materials can be used for the flow - through components and connection parts of the pump during manufacturing.

• The ambient temperature should be less than $40^{°}C$, and the relative humidity should be less than $95\%$.

• The volume content of solid particles in the transported medium should not exceed $0.1\%$ of the unit volume, and the particle size should be less than $0.2mm$.

Note: If the medium contains fine particles, please indicate it when ordering so that wear - resistant mechanical seals can be used.

Advantages of Horizontal Stainless Steel Pipeline Pumps

• Smooth Operation: The absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without any vibration.

• Leak - proof: Hard - alloy seals made of different materials guarantee no leakage when transporting different media.

• Low Noise: Supported by two low - noise bearings, the pump runs smoothly. Except for the faint sound of the motor, there is basically no noise.

• Low Failure Rate: With a simple and reasonable structure and key parts using internationally advanced quality components, the trouble - free operating time of the whole machine is greatly increased.

• Easy Maintenance: Replacing seals and bearings is simple and convenient.

• Space - saving: The outlet can be oriented in three directions: left, right, and upward, which facilitates pipeline layout and installation and saves space.
