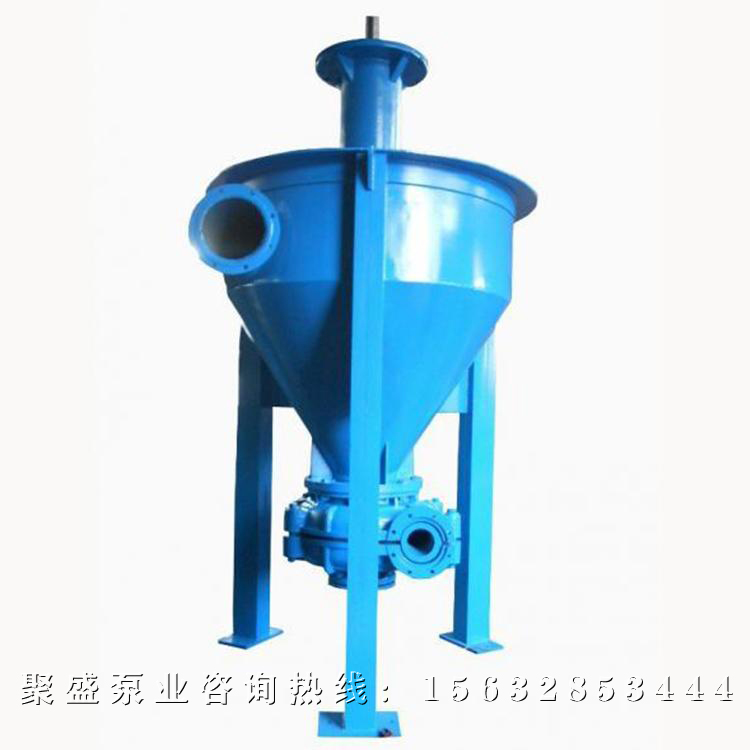

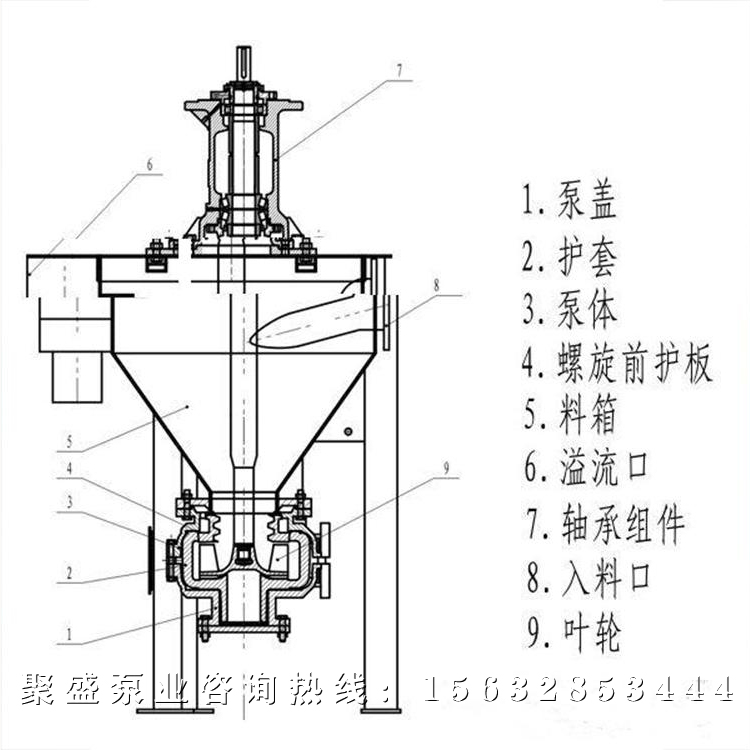

The pump head of the foam pump has a double-pump casing structure, and the flow-through components are made of hard nickel, high chromium or rubber materials. The hopper charging box is a steel plate structural part. According to the different conveyed media, it can be covered with a lining, and the position of the pump outlet can be changed at 45-degree intervals.

This pump can effectively eliminate the foam in the slurry during operation. It can still work normally when the incoming material is insufficient. This series of pumps can effectively eliminate the foam in the slurry during operation and can still operate normally in the case of insufficient incoming materials. It is especially suitable for various flotation process flows and is an ideal product for conveying foam slurries.

Product Features:

1. This type of pump uses the SP-type bearing assembly. The bearing body is equipped with a motor base or a motor frame, and it can adopt either direct drive or indirect drive. The pulley can be conveniently replaced to change the rotational speed of the pump to meet the changes in working conditions.

2. The charging box is made of steel structure, stainless steel, steel-lined rubber, etc., and is equipped with a tangential feed inlet and an overflow box. The overflow box can conveniently send the excess incoming materials back to the material tank, and the tangential inlet can enable the materials to quickly enter the pump and eliminate part of the foam.

3. The pump head structure is a double-pump casing structure. According to different conveyed media, the flow-through components can be made of metal, rubber, or other non-metallic materials.

Transmission Types: DC direct drive, BD vertical belt drive and other types.

It is suitable for various flotation process flows and is an ideal pump for conveying foam-like slurries. Its conveying capacity far exceeds that of other types of products, and it does not require any shaft seal or shaft seal water.
